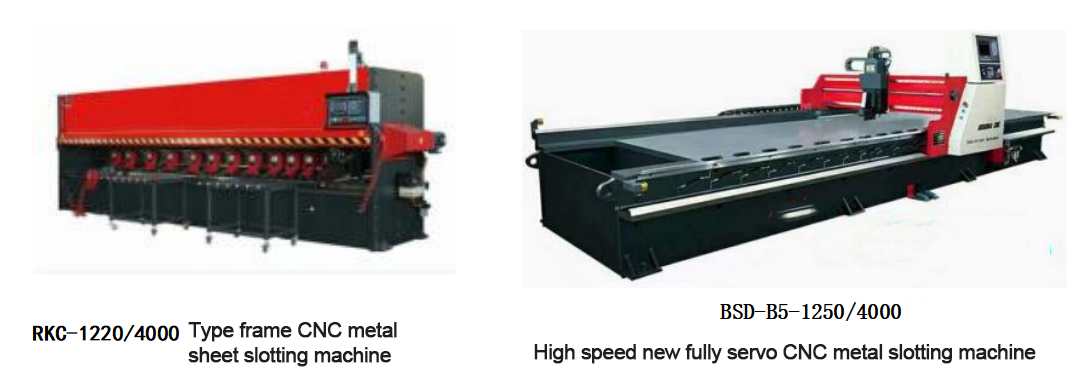

Performance characteristics of the machine tool:
The machine base and crossbeam are designed with frame structure, with good overall rigidity and small deformation.
The machine base is fixed, with helical gear and rack transmission, and the cross beam moves. The moving speed can be adjusted by frequency conversion. The cutting process is stable and efficient, and the cutting surface is flat and smooth.
This machine is a three axis CNC machine tool with X axis digital display, Y1 axis, Y2 axis and Z axis, with high positioning accuracy and large processing range.
The machine is equipped with side pressing device and end pressing device respectively, which are both hydraulic pressure. The pressing force is adjustable, and the pressing is reliable. The hydraulic system is added with accumulator compensation, and the motor clearance works to save energy and control the oil temperature
Technical parameters of notching machine
Maximum width of slotted sheet metal | 1220mm |
Maximum length of slotted sheet metal | 4000mm |
Maximum thickness of slotted sheet metal | 4mm(Flatness of sheet metal＜3mm) |
Minimum thickness of slotted sheet metal | 0.8mm |
Minimum distance between V-shaped groove and edge | 8mm |
Maximum distance of crossbeam movement (X-axis) | 4100mm |
Horizontal beam forward (X-axis) cutting speed | maximum 40m/min |
Backward movement speed of crossbeam | maximum 50/min |
Maximum distance for left and right movement of the knife holder (Y1 axis) | 1220mm |
Moving speed of tool holder left and right (Y1 axis) and end pressing material (Y2 axis) | maximum 20m/min |
Blade holder moves left and right (Y1 axis) resolution | 0.001mm |
Maximum distance of movement on the tool holder (Z-axis) | 50mm |
Moving speed on the tool holder (Z-axis) | maximum 20m/min |
Tool holder up and down movement (Z-axis) resolution | 0.001mm |
Horizontal beam movement (X-axis) motor power | 5.5KW |
Power of servo motor for left and right (Y1 axis) and end pressing (Y2 axis) movement of tool holder | 0.85KW |
Tool holder up and down (Z-axis) movement servo motor power | 0.85KW |
Hydraulic system working pressure | 6-8mpa |
Oil pump motor power | 1.1KW |
Mechanical weight | 8800kg |
Note: If the parameters in this table are inconsistent with the machine tool data, the actual data of the machine tool shall prevail. The Company reserves the right of final interpretation.
